Gillman Food Processing Plant

Unused Overhead Space Transformed Into Productive Area

LOCATION
SA
PROJECT TYPE
Food Manufacturing & Storage Space
TOTAL SIZE
380 m²
INDUSTRY
Manufacturing
MEZZANINES INSTALLED
1
CLIENT
NA.
DURATION
1 Week

Ready to scale?

Speak with our mezzanine specialists today to accelerate your next development.

Request a Free Consult

Project Gallery

On-site installation and finished structural details.

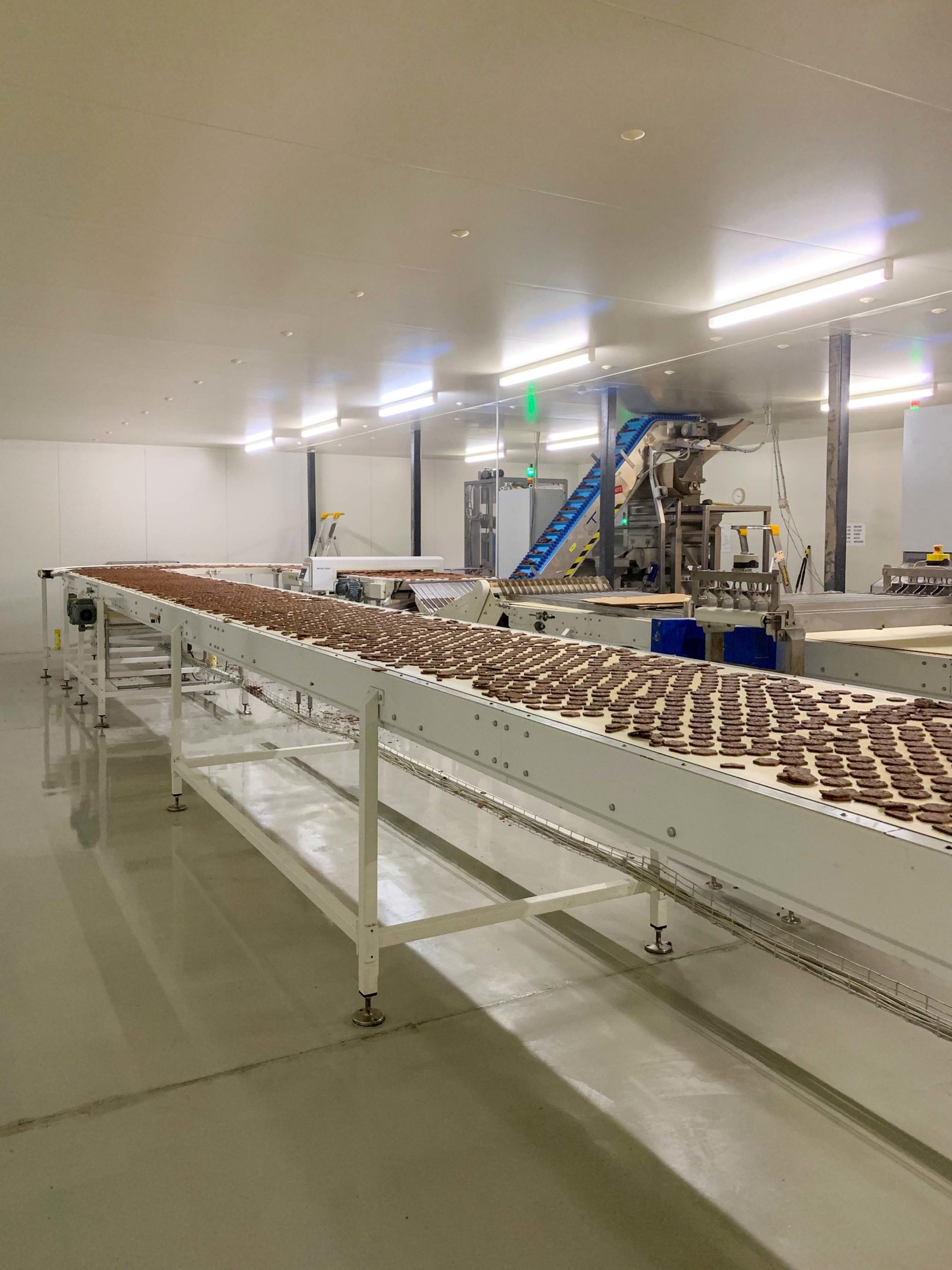

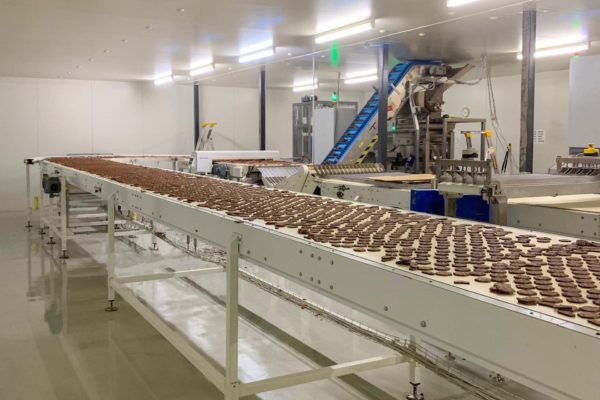

Factory mezzanine for Eat Well Foods
Custom custom warehouse storage platform for Our Projects suitable for efficient logistics centres

Project Overview

We installed a 5kpa 380m2 mezzanine floor using our pre-engineered Hi-Span modular system. The client wanted to utilize unused space over their existing cool room. We were happy to accept the challenge.

We were able to accomplish this task by propping the ceiling from the inside to make it safe to work on. Then we penetrated the ceiling to install our columns/beams and purlins.

We then re-suspended the ceiling causing little disruption to the business production line. We created a custom 4 meter high stair with mid landing and Ball-Tube handrails. We installed a custom Verge safety gate, able to cater for 2 pallets at 2400mm high.

Unlocked 380m2 of storage above the existing cool room.

Technical Specifications

Weight Rating Kg/M2
500 kg/m²
Total Added Floor Space
380 m²
Finished Floor Height
4,000 mm
Structure Type
Hi-Span Modular System
Steel Finish
Charcoal Primer
Handrails
Galvanised Balltube
Access
Custom Steel Stairs with Landing & Custom Rollover Style Pallet Loading Gate

Execution & Impact

Challenges

  • •Installing Mezzanine Above Active Cool Room Operations.
  • •Limited Access Through Existing Ceiling Structure.
  • •Maintaining Safety During Structural Penetration.

Our Solutions

  • ✓Internal Ceiling Propping for Safe Works.
  • ✓Precision Penetration for Column Installation.
  • ✓Custom 4m Stair with Mid-landing Access.

Results & Impact

  • 380m2 of High-Load Storage
  • Minimal Disruption to Production Line
  • Previously Unused Space Fully Utilised
