O'Connor Mezzanine Floor

Maximising warehouse space without compromising operations.

LOCATION
WA
PROJECT TYPE
Storage space
TOTAL SIZE
160 m²
INDUSTRY
Storage
MEZZANINES INSTALLED
4
CLIENT
NA.
DURATION
8 Days

Ready to scale?

Speak with our mezzanine specialists today to accelerate your next development.

Request a Free Consult

Project Gallery

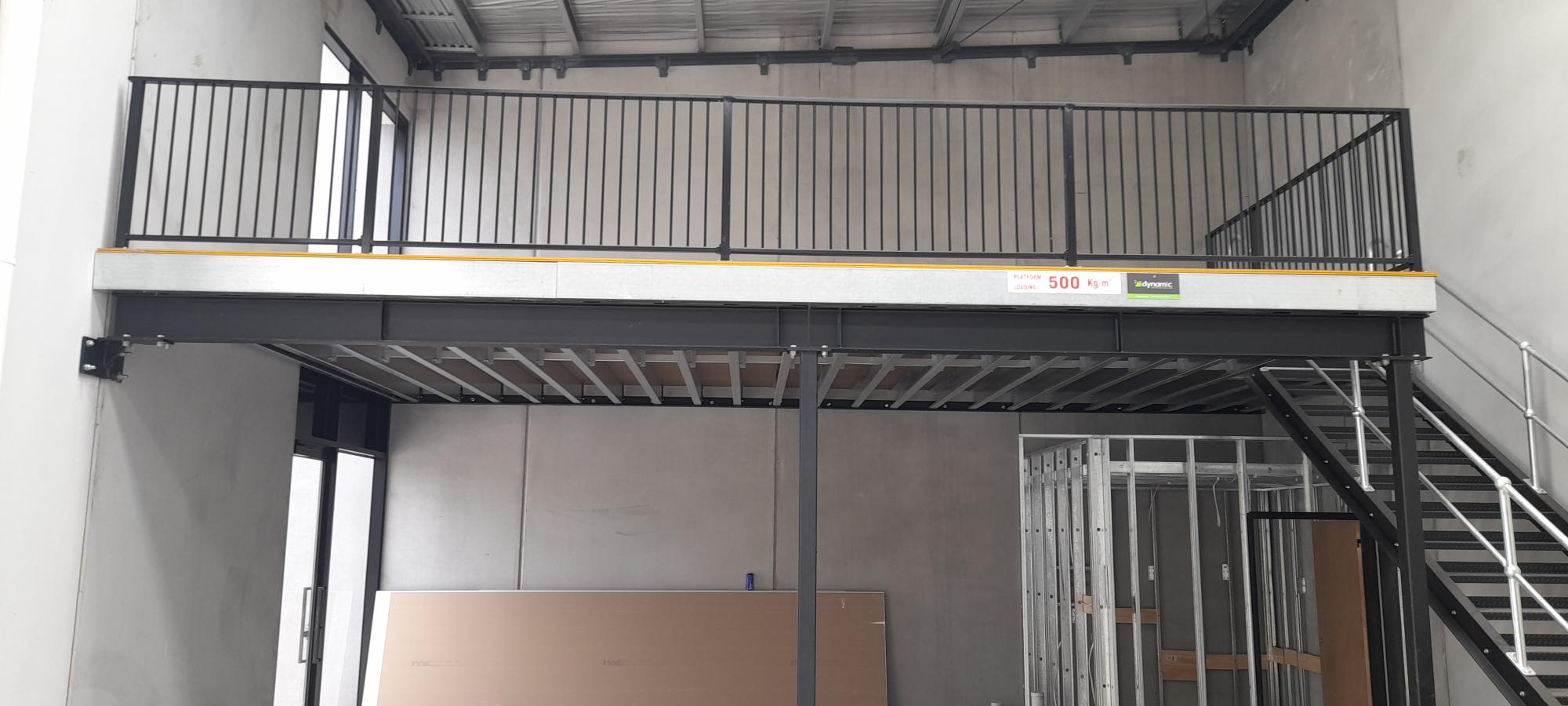

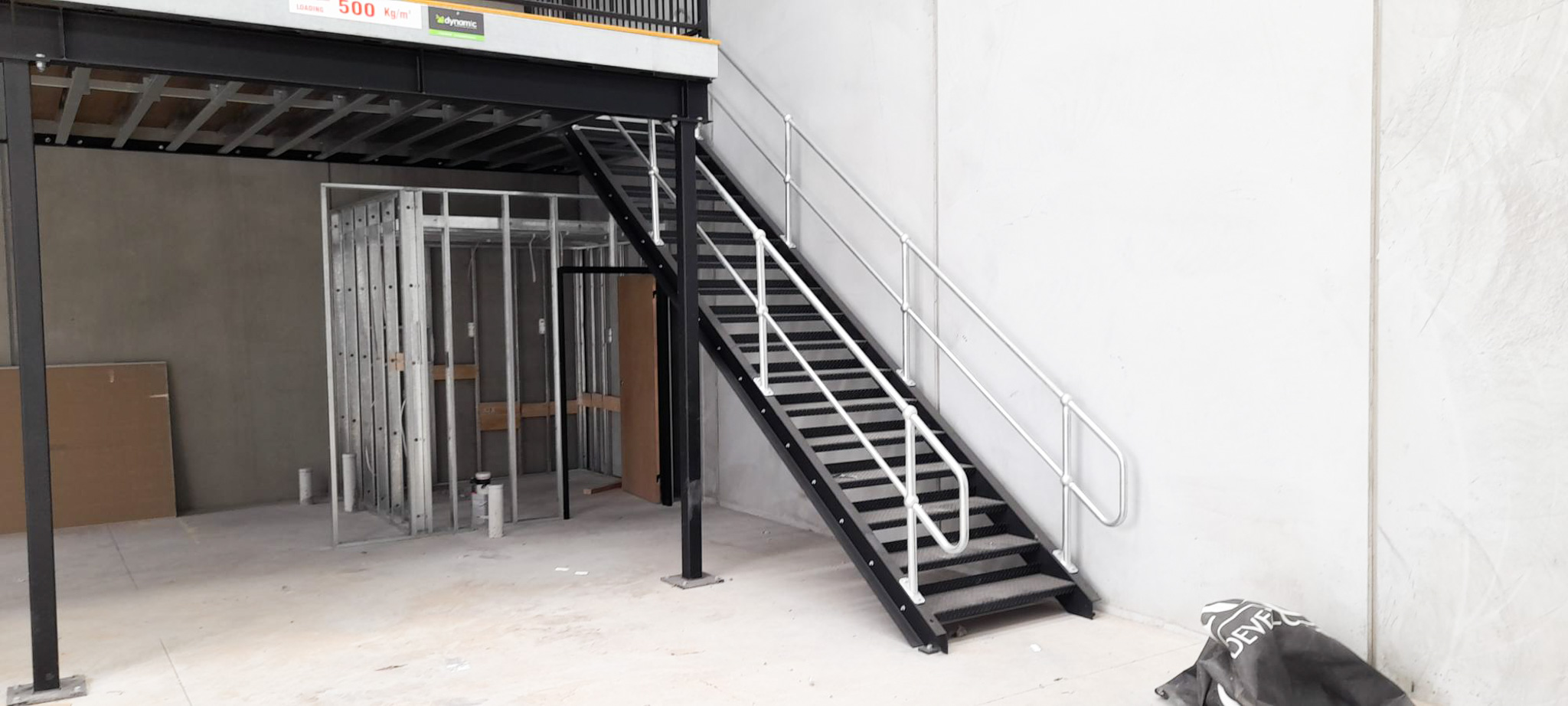

On-site installation and finished structural details.

Project Overview

Dynamic Warehouse Solutions completed the installation of four custom mezzanine floors across four industrial units in O’Connor, WA. Working closely with the project team, we delivered tailored mezzanine solutions to enhance spatial efficiency, functionality, and storage capacity within each unit.

Each mezzanine was individually designed to suit the specific requirements of the unit, with sizes ranging from 49m² in Unit 1, 43m² across Units 2 and 3, and 25m² in Unit 4. This approach highlights the flexibility of our modular mezzanine systems and our ability to adapt designs to varying operational needs.

Structurally free-standing, the mezzanines provide long-term versatility for future tenants or owners, while maximising usable floor area. The result is a significant uplift in usable space, improving both the functionality and overall value of each unit.

By effectively doubling usable space in some units, the mezzanines substantially improve buyer appeal and leasing potential.

Technical Specifications

Number of Mezzanines
4 Mezzanines
Total Added Floor Space
160m²
Finished Floor Height
3,400 mm & 4,000 mm
Weight Rating Kg/M2
500 kg/m²
Steel Finish
Black Painted Finish
Handrails
Black Powdercoated Balustrade
Access
Heavy Duty Staircases

Execution & Impact

Challenges

  • Limited warehouse floor area.
  • Varying unit size requirements.
  • Maximizing value per unit.

Our Solutions

  • Installed custom-sized modular mezzanines.
  • Tailored layouts per Unit.

Results & Impact

  • Increased usable floor space
  • Improved buyer and tenant appeal
  • Greater long-term flexibility
