Maximising warehouse space without compromising operations.
Ellis Air
LOCATION
VIC
PROJECT TYPE
Warehouse, Office & Storage space
TOTAL SIZE
256 m²
INDUSTRY
Construction & Specialty Trade Services
MEZZANINES INSTALLED
1
CLIENT
Ellis Air.
DURATION
7 Days
Ready to scale?
Speak with our mezzanine specialists today to accelerate your next development.
Request a Free ConsultProject Gallery

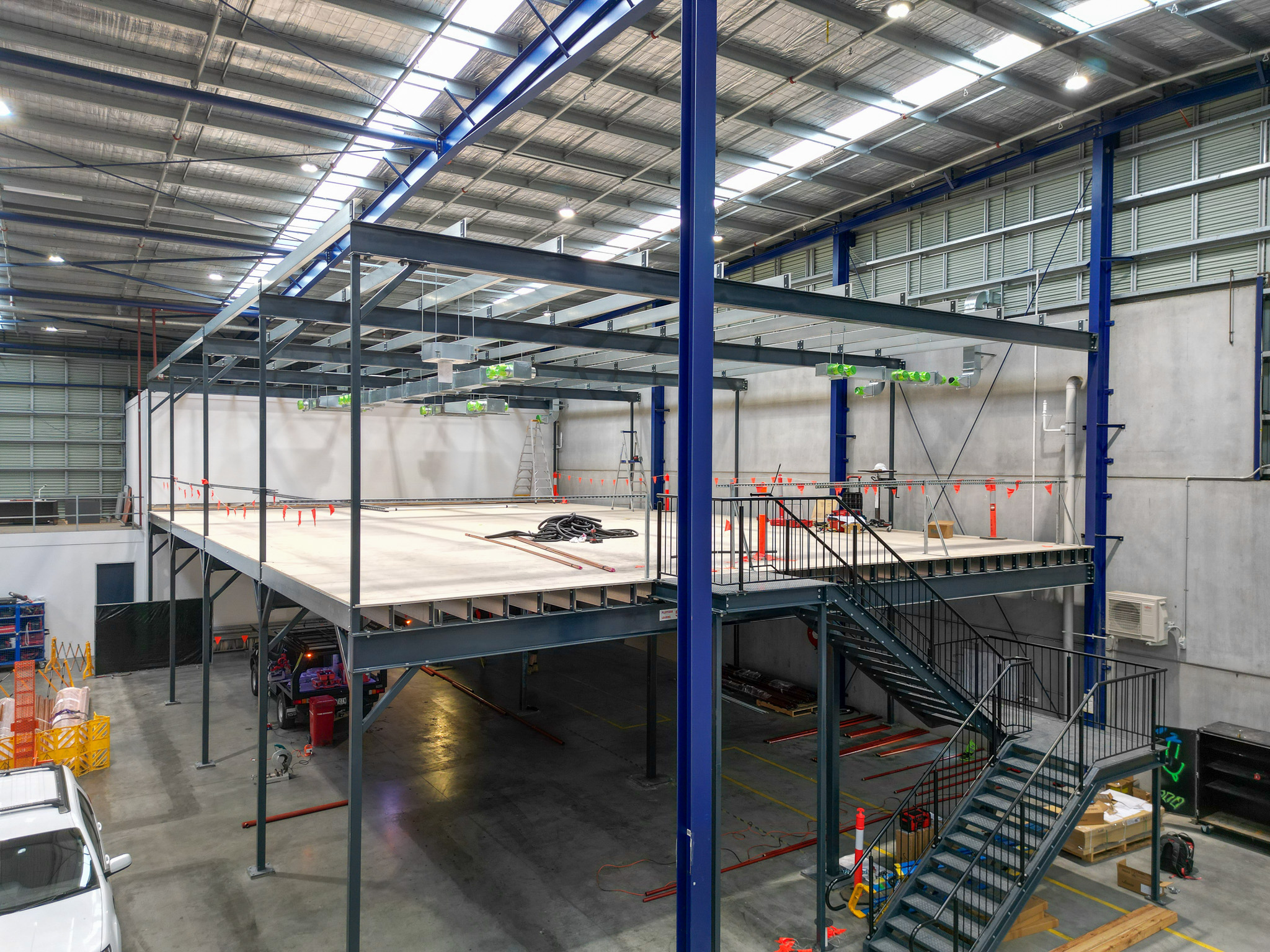

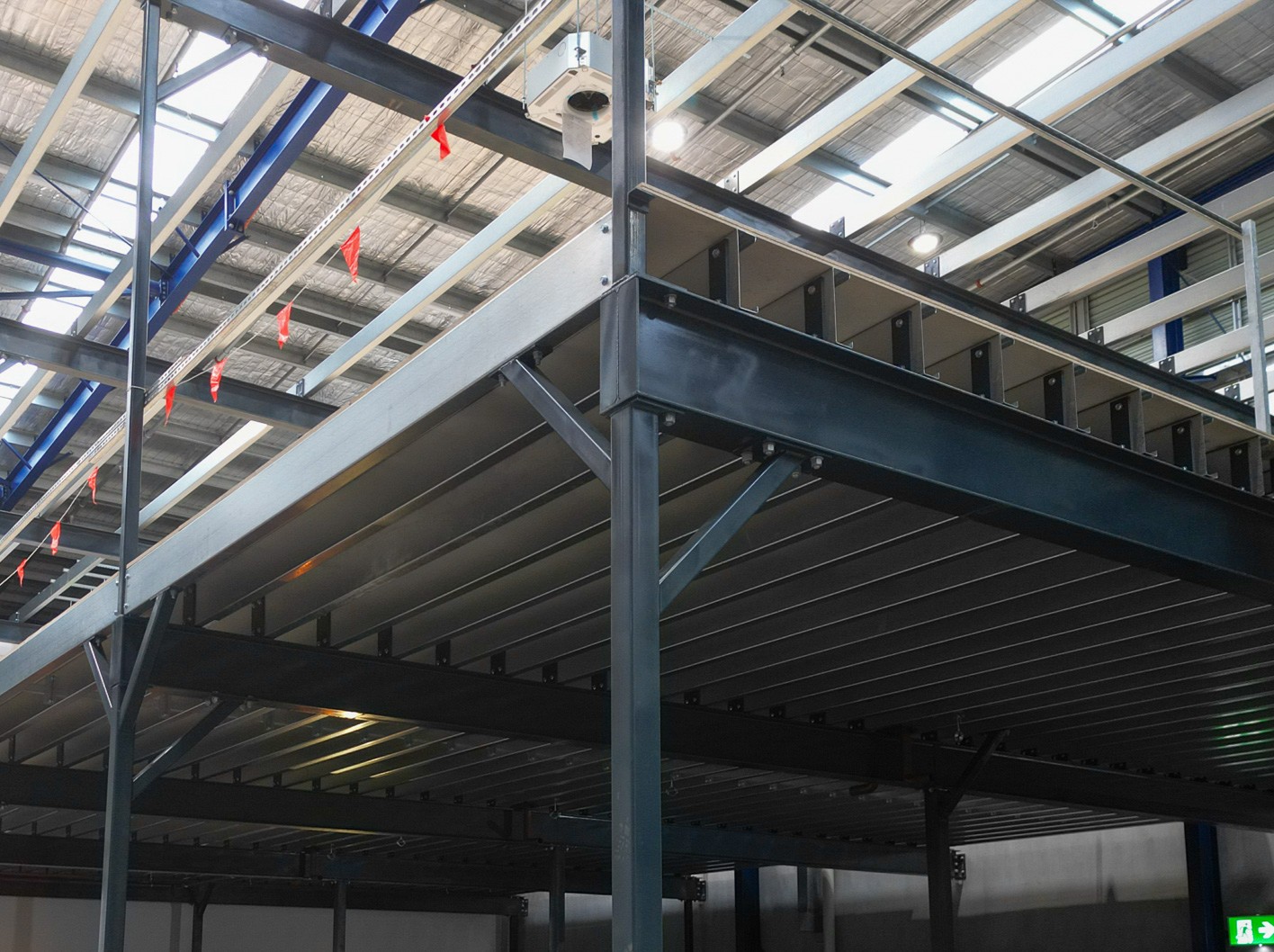

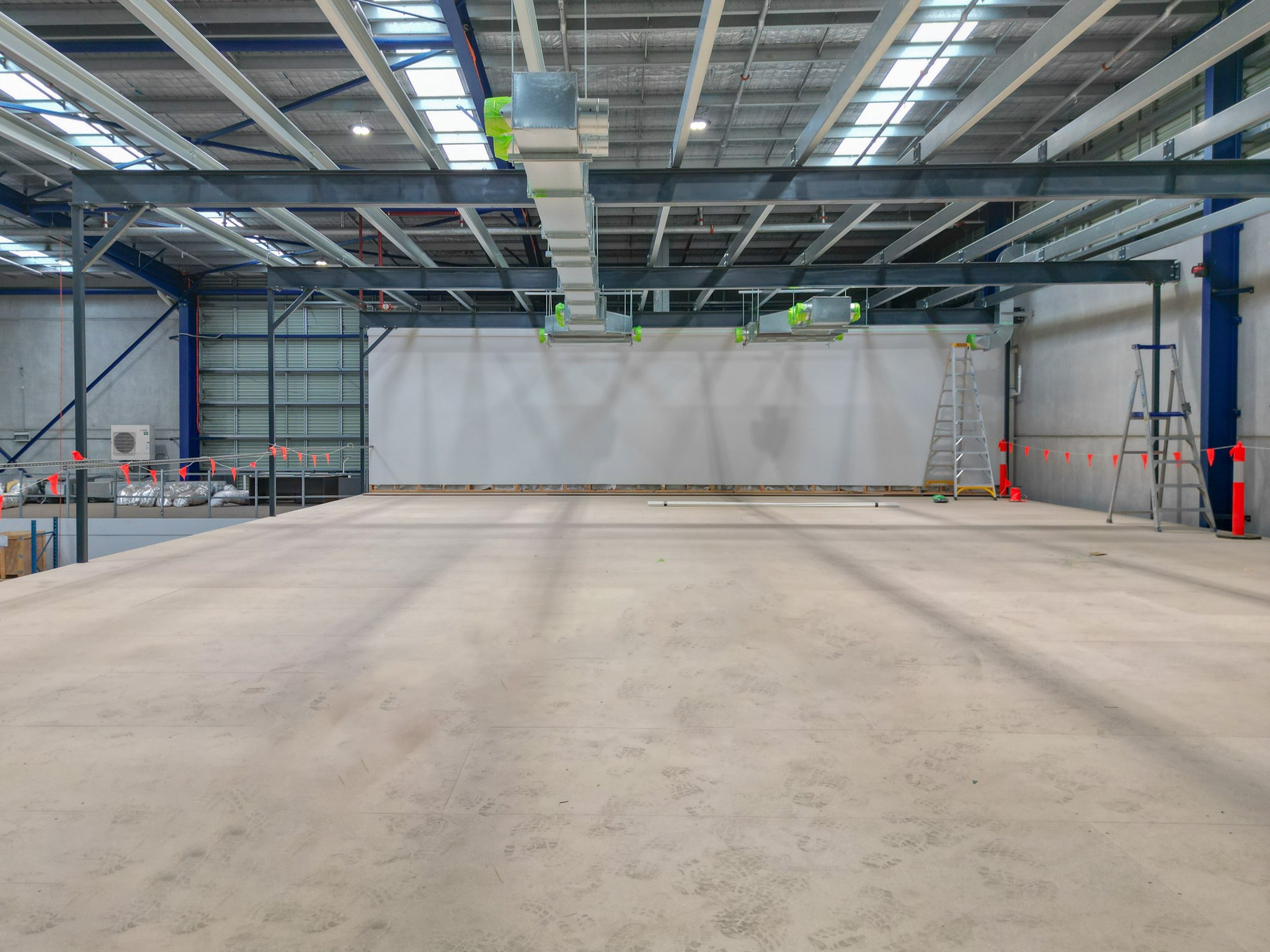

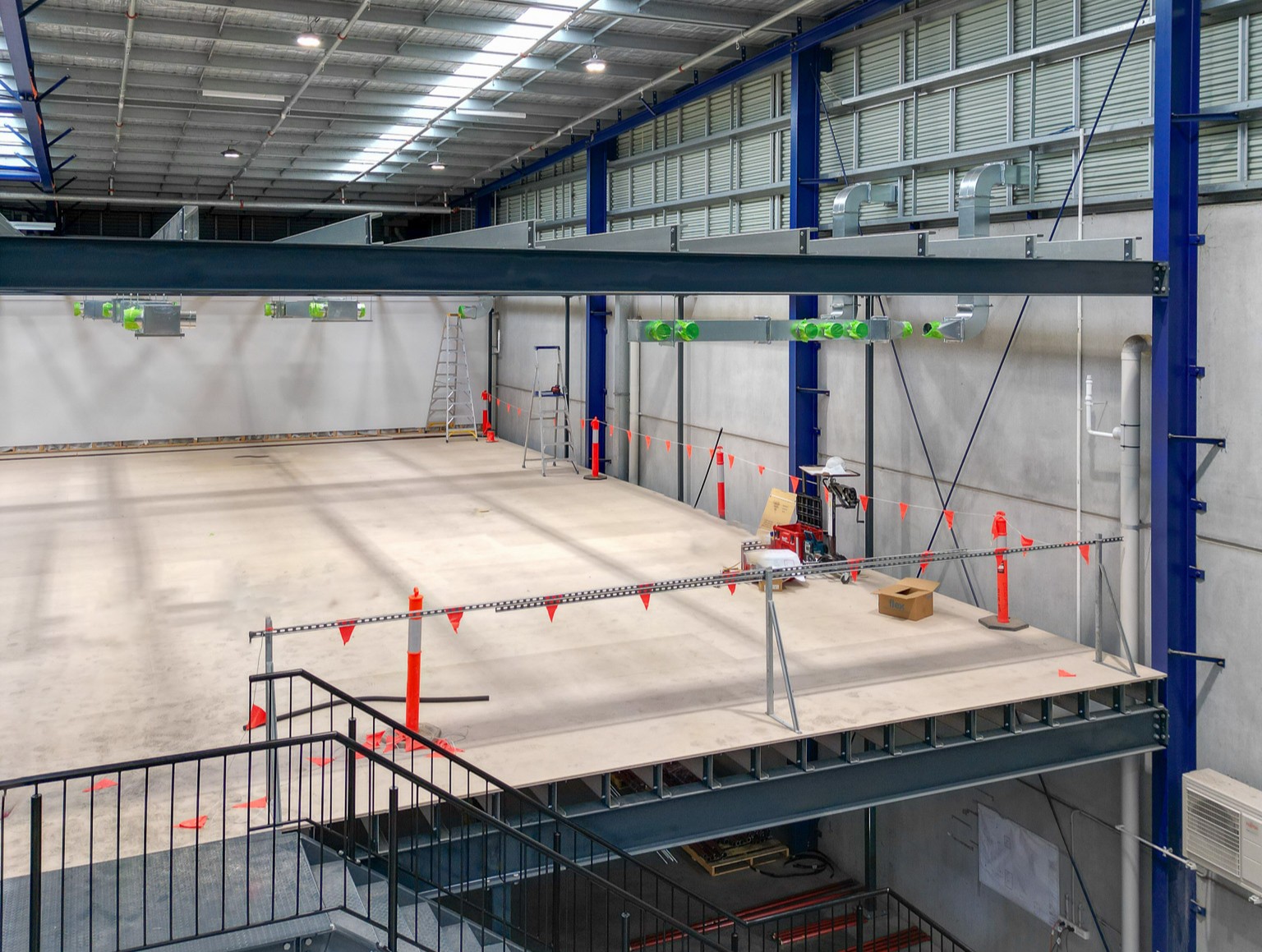

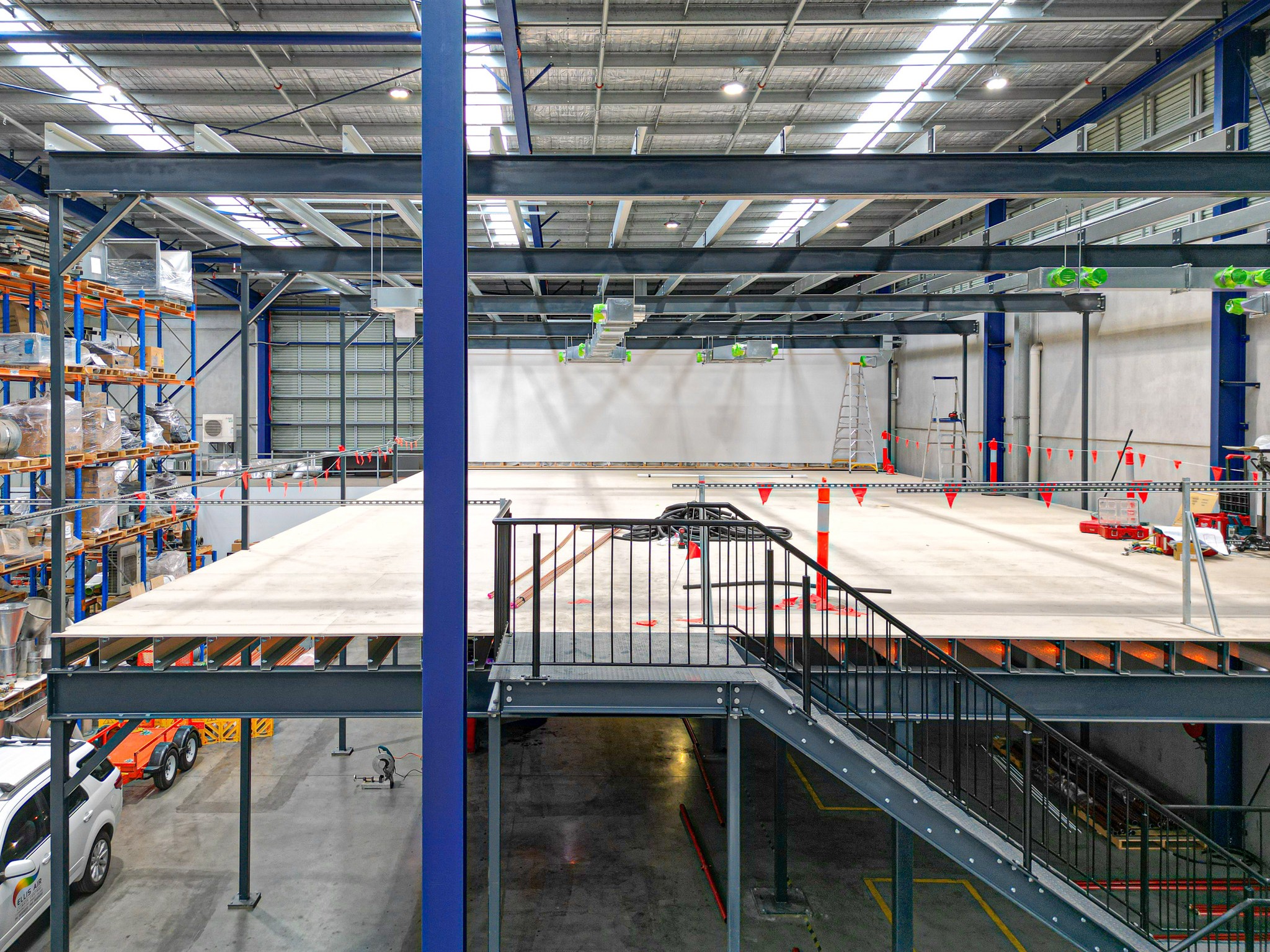

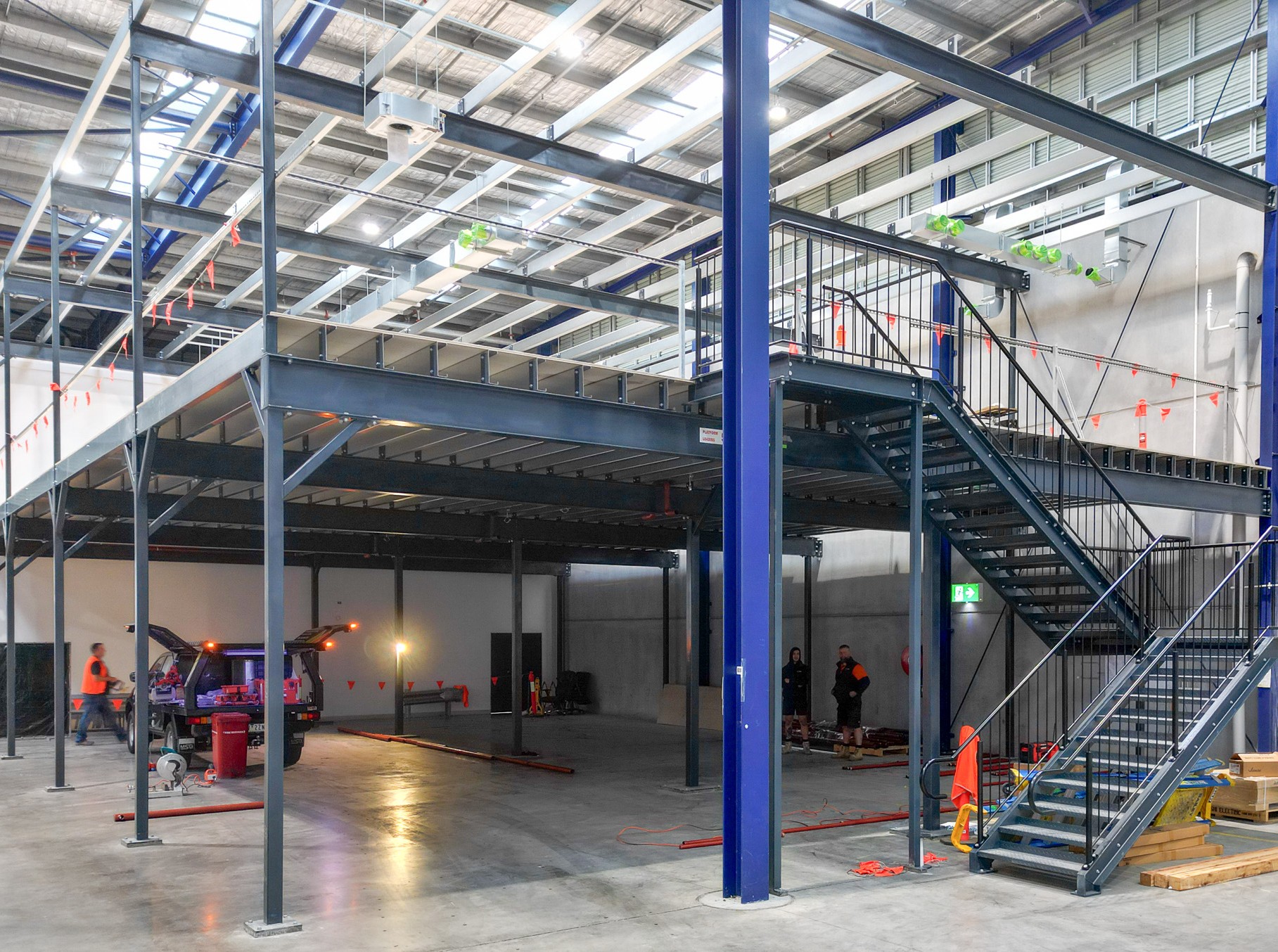

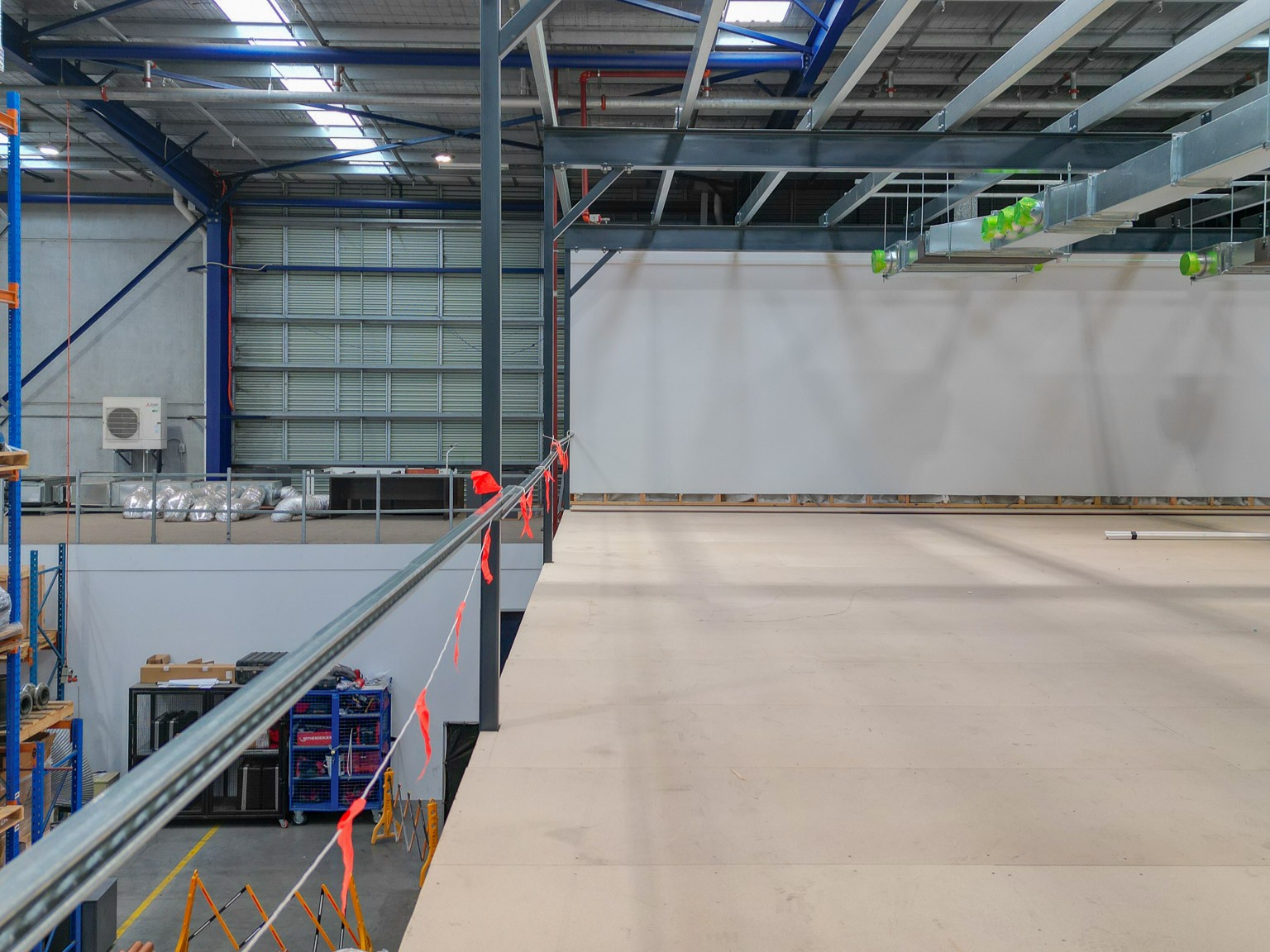

On-site installation and finished structural details.
Project Overview
Dynamic Warehouse Solutions completed a purpose-built two-tier mezzanine for Ellis Air, designed to maximise usable space without compromising day-to-day operations.
Working closely with the client, we delivered a smart vertical solution that separates functions across levels, with the first tier dedicated to new office space (currently being fitted out) and the second tier providing high-capacity storage, keeping the ground floor clear for production and warehouse use.
The mezzanine delivers 256m² of additional floor area with a 5kPa load rating, significantly increasing operational capacity while allowing Ellis Air to grow vertically and maintain an efficient, uncluttered workspace.
Two-tier design frees up 100% of ground floor for production and warehouse operations.
Technical Specifications
Weight Rating Kg/M2
500 kg/m²
500 kg/m²
Total Added Floor Space
256 m²
256 m²
Finished Floor Height
1st Floor 4,000 mm, 2nd Floor 7,000 mm
1st Floor 4,000 mm, 2nd Floor 7,000 mm
Structure Type
Free-Standing Modular
Free-Standing Modular
Steel Finish
Charcoal Primer
Charcoal Primer
Flooring
22 mm Redtongue Particleboard
22 mm Redtongue Particleboard
Access
Heavy Duty Staircases
Heavy Duty Staircases
Execution & Impact
Challenges
- •Need space for storage & offices.
- •Maintain clear ground floor workflow.
- •Heavy storage requiring strong load capacity.
Our Solutions
- ✓Two-tier mezzanine maximising vertical space.
- ✓Offices on first, storage above.
- ✓5kPa-rated steel structure for durability.
Results & Impact
- Added 256m² usable space
- Ground floor fully clear for warehouse use
- Increased overall facility value
