Industry Cladding & Roofing

Maximising warehouse space without compromising operations.

LOCATION
VIC
PROJECT TYPE
Storage space
TOTAL SIZE
140 m²
INDUSTRY
Manufacturer
MEZZANINES INSTALLED
1
CLIENT
Industry Cladding & Roofinng.
DURATION
5 Days

Ready to scale?

Speak with our mezzanine specialists today to accelerate your next development.

Request a Free Consult

Project Gallery

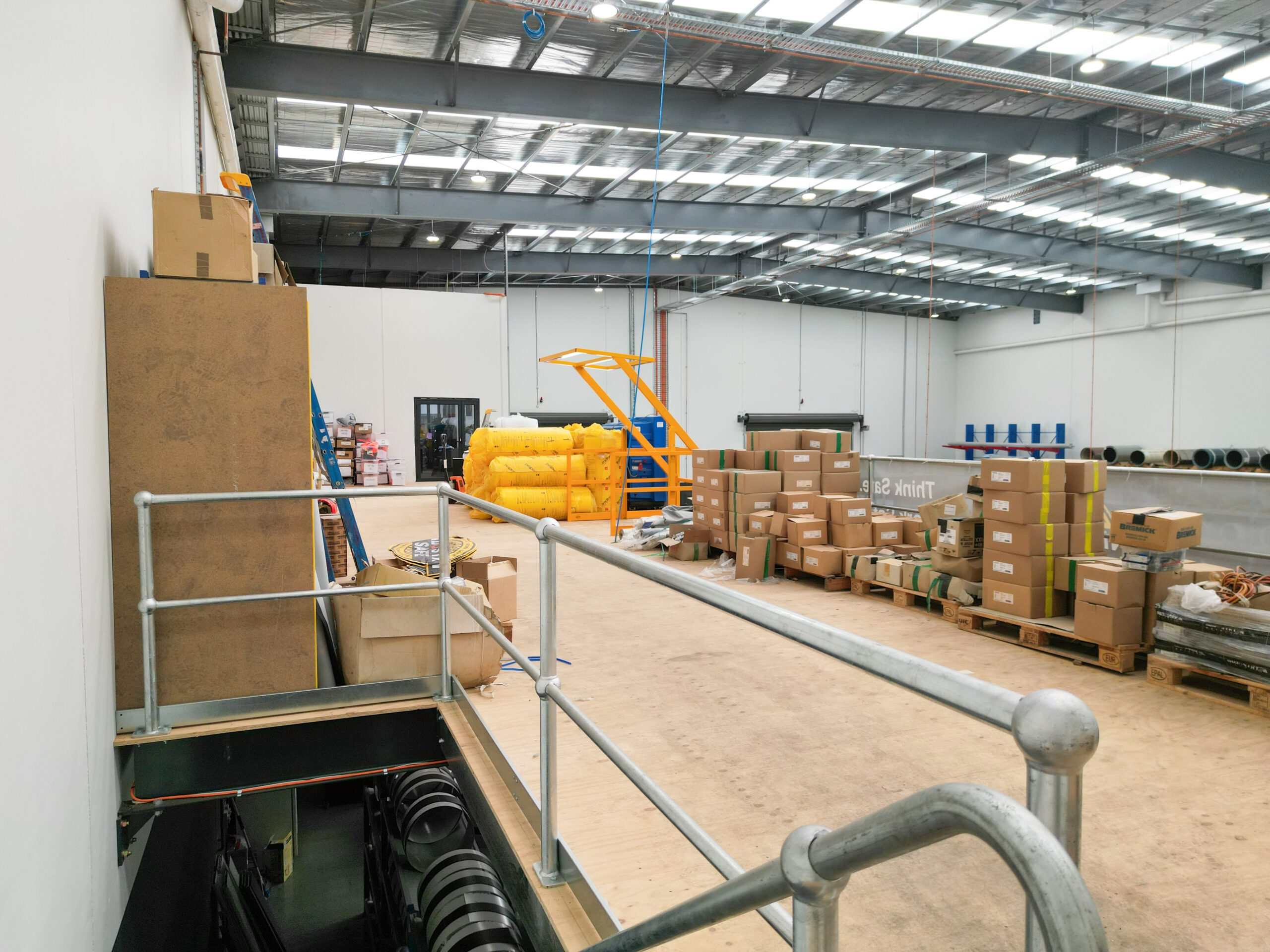

On-site installation and finished structural details.

Project Overview

Dynamic Warehouse Solutions partnered with Industry Cladding to deliver a custom mezzanine solution that significantly increased their manufacturing capacity, without the need to relocate. With limited existing floor space, we worked closely with their team to design and install a 140m² heavy-duty mezzanine floor, allowing expansion within the existing building footprint.

The mezzanine was engineered for strength, safety, and long-term performance, with a 5kPa (500kg/m²) load rating to support high-volume storage. A rollover safety gate was incorporated to enable safe and efficient pallet handling at height, while maintaining uninterrupted operations below.

By relocating all storage to the mezzanine level, Industry Cladding immediately freed up the entire ground floor for manufacturing, boosting productivity, improving workflow, and maximising the value of their space. From design through to installation, our team managed every stage with minimal disruption to day-to-day operations.

“100% of the ground floor reclaimed for manufacturing by moving storage overhead.”

Technical Specifications

Weight Rating Kg/M2
500kg/m2
Total Added Floor Space
1,40 m²
Finished Floor Height
3,804 mm
Structure Type
Free-Standing Modular
Steel Finish
Charcoal Primer
Handrails
Galvanised Balltube
Access
Custom Steel Staircases

Execution & Impact

Challenges

  • Limited existing floor space.
  • Storage impacting manufacturing flow.

Our Solutions

  • Installed custom 140m2 heavy-duty mezzanine.
  • 5kpa load-rated structural design.
  • Integrated rollover safety gate.

Results & Impact

  • Ground floor freed for manufacturing.
  • Increase production capacity.
  • Improved workflow and safety.

Site Walkthrough
